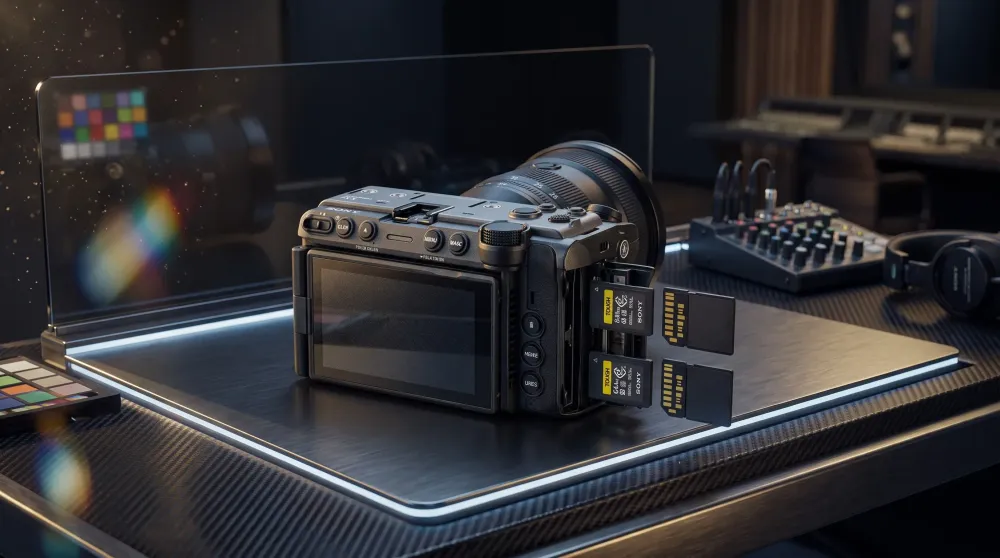

The videography and independent filmmaking industry has been rocked again. Sony has officially announced its latest Cinema Line camera lineup, the Sony FX5. This camera is very intelligently positioned between the flexibility of the Sony FX3 and the professional power of the Sony FX6. For filmmakers, advanced content creators, and production houses that need high mobility without compromising widescreen-level image quality, the Sony FX5 comes as a very solid answer.
Sony is not just providing minor upgrades to this series. They are truly bringing high-end technology from flagship cinema cameras like the Sony VENICE 2 and BURANO into a compact body that is comfortable to hold. Let's break down in depth the advantages, key features, and technical specifications of the Sony FX5.
Fully Stacked Sensor and Cinema-Class Image Performance
The core of the Sony FX5 is a 16.6 Megapixel Fully Stacked CMOS sensor paired with the BIONZ XR2 image processor. The choice of 16.6MP resolution proves to be very deliberate by Sony. Instead of chasing excessive megapixels for video, Sony focuses on super-fast sensor readout speed and very clean low-light performance.
The rolling shutter effect on this camera is minimized to the lowest point. You can perform quick camera movements or capture high-speed objects without worrying about building lines appearing bent or slanted.
In addition, the Sony FX5 is equipped with 15+ stops dynamic range when using the S-Log3 profile. This camera also introduces Triple Base ISO and Dual Gain Shooting features. These features keep image detail in shadow areas clean from random noise, even when shooting in low-light conditions.
Internal X-OCN RAW Recording and Open Gate 5K
One of the biggest surprises brought by the Sony FX5 is the support for internal X-OCN RAW and Open Gate 5K recording formats. This is the first time in Sony's compact Cinema Line history that the proprietary X-OCN RAW format can be recorded directly to a memory card without needing a troublesome additional external recorder.
- Open Gate 5K: Recording uses the entire sensor area with a native 3:2 aspect ratio at 5K resolution up to 60 fps. This feature provides incredible flexibility in post-production, for both horizontal (16:9) and vertical (9:16) video cropping needs without losing detail.
- X-OCN RAW Internal: Offers color grading flexibility equivalent to professional cinema cameras with a much more efficient file size compared to conventional uncompressed RAW formats.
For slow motion capture needs, the Sony FX5 is capable of recording up to 4K 120 fps and FHD 240 fps smoothly.
Ergonomic Design and Filmmaker-Specific Features
Physically, the Sony FX5 retains a compact, rugged body with screw thread points directly on the body. This allows you to mount various rig accessories such as external monitors, mics, or top handles without requiring an additional cage.
Sony also embeds a wide 3.5-inch Multi-Angle touchscreen with built-in cinema exposure assist features:
- Waveform Monitor & Vectorscope built-in
- False Color native for skin tone and exposure precision
- Focus Map for depth of field visualization
An active cooling system in the form of an internal fan is also installed to ensure the camera does not experience overheating, even when used for long-duration recording in RAW or Open Gate formats in hot environments.
AI Focus System and Additional Accessories
The Sony FX5 comes equipped with a dedicated AI Processing Unit for its autofocus system. This AF system can accurately recognize subjects, from humans, animals, vehicles, to aircraft. Focus locking remains stable even when the subject is obstructed by other objects or moves randomly within the frame.
Sony also released two optional accessories specifically designed to expand the capabilities of the Sony FX5:
- DVF-EL1 Viewfinder: A portable detachable OLED viewfinder with a resolution of 7.07 million dots that can be tilted up to 90 degrees.
- XLR-H2 Handle Unit: A top handle that supports high-quality audio recording up to 32-bit float 96 kHz, so audio recording loud sounds will not clip (clipping).
Complete Sony FX5 Specifications Table
| Feature / Parameter | Technical Specifications |
|---|---|
| Sensor Type | Full-Frame Back-Illuminated Fully Stacked CMOS |
| Effective Resolution | 16.6 Megapixels |
| Image Processor | BIONZ XR2 + AI Processing Unit |
| Dynamic Range | 15+ Stops (S-Log3) |
| Sensor Features | Triple Base ISO & Dual Gain Shooting Mode |
| Internal RAW Format | X-OCN RAW (Internal Slot) |
| Open Gate Recording Mode | 5K (3:2) up to 60 fps |
| Maximum Video Frame Rate | 5K 60 fps / 4K 120 fps / FHD 240 fps |
| Color Profiles | S-Cinetone, S-Log3, ITU709, Custom LUTs |
| Native Monitoring Features | False Color, Waveform, Vectorscope, Focus Map |
| Autofocus | Fast Hybrid AF with AI-based Real-time Tracking |
| Main Screen | 3.5-inch Multi-Angle Touchscreen LCD |
| Memory Card Slots | Dual Slot (CFexpress Type A / SD UHS-II) |
| Audio | Supported by Optional XLR Handle up to 32-bit Float / 96 kHz |
| Connectivity & Ports | Dual USB-C (USB PD), Timecode BNC, Full HDMI, LAN Wired |
| Cooling System | Active Internal Fan |
The Sony FX5 bridges the dreams of many videographers who desire image quality on par with large cinema cameras in a compact package that is easy to carry anywhere. The support for Open Gate 5K, internal X-OCN RAW recording, and AI-based intelligent focus system make it one of the most complete and powerful compact cinema cameras on the market today.
